Mold Scam Alert! Homeowners Beware!

June 29, 2013

Mold Scam Alert! Homeowner Beware!In a perfect world you could trust everyone, but it’s not a perfect world. Like every industry, the mold business has its share of scammers and con men seeking to profit from your lack of knowledge about mold. Here are the top 8 mold scams and tips on how to avoid them.

Mold Scam # 1: Mold Inspectors Who provide Mold Remediation.

The worst perpetrators of mold scams are “mold inspectors” who are also in the mold remediation business. Mold remediation is a very profitable business. Many mold remediation contractors use free or deeply discounted mold inspections as a means to drum up expensive remediation jobs for themselves.

This is a common scam that works almost every time if the mold remediation company does not have a independent 3rd party mold assessor. Remediators should have an independent 3rd party reviewing work to ensure cleanup is complete.

How to Avoid It: If someone is offering a FREE mold inspection you should be cautious. Almost always a “Free” mold inspection will find mold which results in extra work. Mold inspectors should never base their opinion solely on the outcome of a laboratory report. The best way to avoid this mold scam is to hire an inspector who is not in the remediation business and ensure that the remediation company you hire is agrees to independent 3rd party review of ALL of their work. That’s the only way to ensure an unbiased inspection report.

Mold Scam # 2: Free Post-Remediation Verification or Clearance Testing.

The final step in the mold remediation process is a post-remediation verification inspection aka mold clearance inspection conducted to verify and document that the remediation was in fact successful.

The post-remediation verification inspection should be conducted before any re-construction work begins so the mold inspector can visually see that there is no mold left on the remediated materials. Many mold remediation contractors offer “FREE” post-remediation verification inspections or clearance testing.  The post-remediation verification inspection or clearance testing is vital to the mold remediation process.  Insurance companies, mortgage lenders and prospective buyers of your property in the future will want to see written confirmation that the mold issue was resolved.

Post-remediation clearance testing should never be performed by a mold remediation contractor waiting to get paid for his work. With thousands of dollars on the line, it‘s highly unlikely that a mold remediation contractor will fail his own work.

How to Avoid It: The way to avoid this scam is the same as Mold Scam #1. Have you post-remediation verification or clearance test performed by an independent 3rd party Licensed Mold Inspector who does not work for your remediation contractor.

Mold Scam # 3: Encapsulating Fungal Growth.

Encapsulation is a trade term used by certain mold remediation contractors. The goal of encapsulation is to essentially cover or glue any remaining mold in place to prevent the release of spores. This is possible to do and may even be the preferred (or the only realistic or economic) method of choice is some cases. However, if you have fixed the water problem, dried the remediated materials and removed all of the mold growth, encapsulation should is not necessary.

As a rule, encapsulation is not an acceptable stand-alone solution for a successful remediation project. For prevention purposes, there are now proven treatment products that work to prevent the return of mold to the newly installed building materials – these are not encapsulates as they are not designed to cover the mold. Deciding To Encapsulate: In the remediation process, contractors will scrape, sand, grind, and wire brush as much mold as they can from salvageable construction materials such as studs, ceiling and floor joists. At some point they determine that they have removed as much mold growth as possible for the amount of money they are charging you. At that point, if your contractor is confident in his work, he will inform you that your project is ready for a post-remediation survey and clearance test.

If they are not completely confident that the job will pass a post-remediation air test, often times they will spray a sealant (or encapsulate) over the construction materials inside the containment area. There are four reasons why contractors decide to encapsulate: The Legitimate Reasons: He suspects that there may still be traces of mold left in areas that cannot be accessed without major demolition and encapsulating those areas will inhibit spore release.

He suspects there is a possibility that moisture is still a factor in or around the remediated area and, as a precautionary measure, he wants to apply a water seal treatment to the salvaged materials to protect them from that moisture.

There are contractors who process their work to exemplary levels and then apply „shields‟ for future prevention purposes – these contractors will allow for testing at the client‟s discretion as they normally pass whether at the end of remediation or after applying their final step products. The Scam Reason: His work is sub-standard. He simply did a bad job of remediation the mold and to hide his poor workmanship, he uses encapsulation (usually a solid color) to “paint over” it. How To Tell the Difference:

When encapsulation is done properly by a responsible remediation contractor, the encapsulate product should always be clear so that a third-party Inspector can visually see the remediated materials in this post-remediation survey and confirm that no mold growth remains. When encapsulation is done to cover up a bad job, the contractor will use a solid color encapsulate product (typically red or white) to hide whatever mold they left behind, making it impossible for the Inspector to verify that all mold has been removed.

Some unscrupulous contractors try to encapsulate with KILZ, which is just a stain killing paint with absolutely no anti-microbial properties or ability to encapsulate mold spores. Some actually use regular paint which insidiously provides additional moisture in support of the underlying mold issue – worsening an already costly situation.

How to Avoid It: Before your remediation contractor begins, ask him if he intends to use an encapsulant and, if so, insist that whatever product he uses must dry clear. No solid color encapsulates and no KILZ. Secondly, before your contractor applies an encapsulant, ask him to take you into the containment area (the work area) and explain to you why he believes encapsulation is necessary.

This is different than a professional contractor who has performed the necessary remediation and then applies a preventive shield – ask about their warranty coverage to uncover any suspect disclaimers or restrictive limits of liability. Tips on Encapsulation: Before encapsulation can be considered: Whatever water problem that occurred which led to mold growth must be corrected and unlikely to occur again. Mold will grow on encapsulating materials if the materials get wet. All mold growth has been removed from surfaces where it is possible to remove it.

Encapsulating is not an alternative to mold remediation. The substrate or surfaces to be encapsulated must be completely dry. Otherwise mold will grow right through the encapsulant. Encapsulating mold growth may not be safe or an adequate safeguard where immune compromised people live.

Encapsulating should be considerably less expensive than actually removing all of the mold contaminated materials. Encapsulation is not a permanent fix. Completely removing all of the contaminated material is always best. Encapsulates are very limited in their effectiveness and should not be confused with anti-microbial bonding agents that work specifically to deny mold spores the ability to grow by separating them from their food sources. Encapsulates, by their nature and design, leave mold spores in place on their food sources and are not effective in inhibiting future growth and damage.

Mold Scam # 4: Mold Remediation with Chemical Bio-cides

The goal of mold remediation is to remove or clean mold contaminated materials in a way that prevents the emission of mold and dust contaminated with mold from leaving a work area and entering an occupied or non-remediation area, while protecting the health of workers performing the mold remediation.  The goal is not to kill the mold it’s to collect and remove it.

The first step in solving an indoor mold problem is stopping the source of moisture. Next is to remove the mold growth.  Next is the proper cleaning and removal of mold contaminated personal property and building material. The proper method is the collection and removal of the mold. Improper methods for cleaning mold include the application of fungicides and biocides to kill mold. These methods may render the mold non-viable (dead or incapable of growth); however, the mold and its by-products can still elicit negative health effects. The mold is still and allergen in your home until its removed.

A mold spore is an allergen that may or may not have the presence of mycotoxins.  Some of these mold spores have the ability to germinate and may eventually grow to be a colony.  To prevent this we correct the moisture that was supporting the mold growth and wala the mold will not have the available moisture to grow.  Now all we have to do is collect the remaining allergens (aka mold spores) and remove them from the home.

If we simply apply fungicides or biocides to kill the mold so it won’t grow we still have the mold spore or allergen that may or may not have the presence of mycotoxins.  But…the mold spores are still in your home, still an allergen, still have the potential of containing mycotoxins, and are now completely covered in a poison, just Wonderful.  And the poisonous mold still needs to be removed.

So to recap this scam; the mold remediation is sold as a process of killing the mold so it won’t harm you and that the fungicides or biocides are usually “Green”.  However the mold will be left in your home right along with the fungicides or biocides.  Your home will now have mold allergens and fungicides or biocides.

Below are a few of the resources that address the use of chemicals for remediation.

The ANSI approved IICRC S-520

Source removal of mold contamination should always be the primary means of remediation.  The Indiscriminant use of antimicrobial products, coatings, sealants, and cleaning chemicals is not recommended.

New York City Department of Health

“The use of gaseous, vapor-phase, or aerosolized biocides for remedial purposes is not recommended. The use of biocides in this manner can pose health concerns for people in occupied spaces of the building and for people returning to the treated space if used improperly.

American Industrial Hygiene Association

The goal of remediation is removal of mold and the moisture source because: a) biocides do not alter mycotoxins or allergens; b) it is generally not possible to get 100 percent kill with biocides; and c) because of (b), the newly deposited spores, re-growth will occur after the biocides if moisture returns.

U.S. Environmental Protection Agency

“The purpose of mold remediation is to remove the mold to prevent human exposure and damage to building materials and furnishings. It is necessary to clean up mold contamination, not just to kill the mold. Dead mold is still allergenic, and some dead molds are potentially toxic.

Whether dead or alive, mold is allergenic, and some molds may be toxic. Mold can generally be removed from nonporous (hard) surfaces by wiping or scrubbing with water, or water and detergent. It is important to dry these surfaces quickly and thoroughly to discourage further mold growth. Instructions for cleaning surfaces, as listed on product labels, should always be read and followed. Porous materials that are wet and have mold growing on them may have to be discarded. Since molds will infiltrate porous substances and grow on or fill in empty spaces or crevices, the mold can be difficult or impossible to remove completely.

The EPA has not registered any products for sanitizing or disinfecting ductwork. Further, no fungicides are registered for use in ductwork. It is a violation of federal law to use a product in a manner inconsistent with its labeling. For antimicrobials, this law is the Federal Insecticide, Fungicide, and Rodenticide Act (FIFRA). Therefore, any claims of sanitizing or disinfecting ductwork would require the use of a product in a manner inconsistent with its labeling, which is a violation of FIFRA.

How to Avoid It: The best way to avoid this scam is to only hire State Licensed Mold Remediators that follow the S520 Standard and Practice for Professional Mold remediation.  Always remember that the goal of mold remediation is not to kill the mold it’s to collect and remove the mold.  Remember without the water the mold won’t grow. I would consider that the “Greenest” fungicides or biocides available.

Mold Scam # 5: Ozone Generators:

Many sellers of ozone generators have jumped on the mold bandwagon. Resellers and dealers of ozone generators make false statements about the ability of ozone air purifiers to kill mold. It is not true. False advertisements of ozone devices often use misleading terms such as “energized oxygen” and “pure air” suggesting that ozone is a healthy kind of oxygen. The fact is, ozone is a toxic gas with vastly different chemical and toxicological properties from oxygen.

Claims that ozone generators sold as air purifiers are effective at controlling indoor air pollution are simply not true. Several federal agencies have established health standards or recommendations to limit human exposure to ozone.

The U.S. Food and Drug Administration (FDA) has established an ozone level of .05 ppm (parts per million) as the maximum level allowable in an enclosed spaces. Relatively low amounts of ozone can cause chest pain, coughing, shortness of breath, and, throat irritation.

Ozone may also worsen chronic respiratory diseases such as asthma and compromise the ability of the body to fight respiratory infections. Exercise during exposure to ozone causes a greater amount of ozone to be inhaled, and increases the risk of harmful respiratory effects (US EPA, 1996a, 1996b). Some manufacturers and resellers of Ozone Generators sold as air purifiers claim that these products help to control mold.

According to the Environmental Protection Agency, however, (EPA) these products may very well add to indoor air pollution and even make indoor mold conditions worse.

The EPA web site states that:

  • available scientific evidence shows that ozone has little potential to remove indoor air contaminants
  • ozone is not effective at removing viruses, bacteria, mold, or other biological pollutants
  • ozone is not even effective at removing odor-causing chemicals.

In fact, results from controlled studies show that some ozone generators produce unsafe concentrations of ozone even when a user follows the manufacturer’s operating instructions.

Buyer Beware: Beware of misleading advertising claims stating of implying that a particular brand of ozone generator is “EPA APPROVED”. Several brands of ozone generators have EPA establishment numbers on their packaging. This number helps EPA identify the specific facility that produces the product. The display of this number does not imply EPA endorsement or suggest in any way that EPA has found the product to be either safe or effective. The EPA does not certify air cleaning devices, recommend air cleaning devices or endorse manufacturers of air cleaning devices. For more information from the EPA regarding the use or effectiveness of ozone generators, please visit their web site at: http://www.epa.gov/iaq/pubs/ozonegen.html

www.FloridaIAQ.com

– See more at: http://activerain.com/blogs/jlapotaire#sthash.rcj3Sh16.dpuf


The EPA RRP Renovation, Repair and Painting Rule

June 28, 2013

ImageEPA‘s RRP Rule requires anyone (remodeling, renovation and painting contractors and most other trades) who works in pre-1978 housing for compensation and who might disturb painted surfaces to become an EPA Certified Renovator by taking a “Lead Safe Work Practices” RRP class from an EPA accredited training provider.

Why is the RRP Rule important?

When lead paint is sanded or scraped or disturbed, microscopic particles of the metal mingle with the dust that is created. That “lead-containing” dust is what can seriously impact people’s health, especially children and pregnant women.

Lead causes a long list of problems, including learning and behavioral problems, kidney disease, high blood pressure, miscarriage and birth defects.  Lead can even cause depression and aggressive behavior.  Experts say lead poisoning doubles the number of children in special education classes. Studies show it plays a major role in crime rates. Any amount of lead is bad for you. There is no safe level.

There has been a lot of publicity about toys and other consumer products containing lead.  But, problems caused by all of those products put together is a drop in the bucket compared to the number of people harmed when contractors disturb old paint in pre-1978 buildings without taking some simple precautions. That’s why EPA and the State of California require contractors to protect people they work for.

To whom does the RRP Rule apply?

The RRP rule applies to anyone who works for compensation in pre-1978 housing and child-occupied facilities, including:

* General contractors

* Demolition workers

* Remodeling contractors

* Maintenance workers in multi-family housing

* Painters, plumbers and most specialty trades.

The RRP rule covers a lot of jobs: renovation, remodeling, painting, window replacement, plumbing, electrical work, heating & air-conditioning, demolition, plus work performed by trades like carpenters, electricians and handymen.  The rule also applies to persons working for rental property owners, schools, and day care providers.  And, it also applies to non-profits and governmental agencies.

Where does the RRP Rule apply?

The RRP rule applies to “Target Housing” and “Child-Occupied Facilities.”

Definition: Target Housing – is a house or apartment (including mobile homes) built before January 1, 1978 except for:

1)   0-bedroom units (like dorm rooms or studio apartments)

2)   housing that is officially designated for the elderly or the handicapped

3)   housing that has been tested by a State Certified Lead Inspector and found to be free of lead-based paint.

Definition: Child-Occupied Facility – is a building, or portion of a building, constructed prior to 1978, visited by the same child, 6 years of age or under, on at least 2 different days within any week, provided that each day’s visit lasts at least 3 hours, the combined weekly visit lasts at least 6 hours, and the combined annual visits last at least 60 hours. Such facilities may include, but are not limited to, day-care centers, preschools and kindergarten classrooms.

What does the RRP Rule require?

  1. Pamphlet Distribution – Contractors must give clients a pamphlet called “Renovate Right” and get a signed receipt before beginning a job.

Contractors can call (800) 424-5323 and ask for free copies of “Renovate Right” and the “Small Entity Compliance Guide to Renovate Right” or both can be downloaded as PDF files from the EPA website.

  1. Individual Certification – At least one RRP Certified Renovator is required at each job site. Certification involves taking a 1-day class from an EPA Accredited Training Provider.
  2. Firm Certification – In addition to individual certification, each firm, agency or non-profit must also become RRP certified. (Note: This includes city agencies and school districts as well as small “one-man-band” handymen and owners of rental property.) Firms or “entities” must submit an application and pay EPA a fee ($300) which is good for 5 years.

The EPA Firm Certification Register your firm online at EPA web site. You do not need individual certification to submit a Firm Application. Firms should apply as soon as possible.

According to the EPA, after April 22, 2010, “… no firm working in target housing or child-occupied facilities, where lead-based paint will be affected by the work, may perform, offer or claim to perform renovations without EPA Firm Certification.”

Firm certification is NOT the same as individual certification attained by successful completion of an RRP course. There is no training requirement for Firm Certification.

www.FloridaIAQ.com

– See more at: http://activerain.com/blogs/jlapotaire#sthash.rcj3Sh16.dpuf


Houseplants and Indoor Air Quality, Fact of Fiction?

June 10, 2013

ImageI should start by saying that I really do love a houseplant and there was a time when my home resembled a jungle.  I also noticed that it was increasingly difficult to maintain so many houseplants properly.  As time went on the number of houseplants was reduced slowly but surely as attrition took over and the little air scrubbers past away from lack of care.  I don’t recall the air quality as being better or worse to be honest but I do know that if I knew then what I know now I would have helped with the attrition.  I will get to that in a minute after we review what the EPA and NASA have to say about this touchy subject.

First the EPA acknowledges that over the past few years there has been some publicity suggesting that houseplants have been shown to reduce levels of some chemicals in laboratory experiments.  The EPA also points out that there is currently no evidence, however, that a reasonable number of houseplants remove significant quantities of pollutants in homes and offices.

The EPA also makes a sure to remind us that Indoor houseplants should not be over-watered because overly damp soil may promote the growth of microorganisms which can affect allergic individuals.  I know you already want to jump ahead but let’s see what NASA has to say first.  Be patient.

They report that the foliage of indoor houseplants is capable of removing low levels of pollution; while the roots, assisted by activated carbon filters, removed air pollutants at higher concentrations.  In these tests NASA reports that these filters removed and biologically degraded pollutants before they accumulated.

I am clearly not a NASA scientist so it’s easy to see why I have trouble wrapping my mind around why the activated carbon filter assisted houseplants that remove biological pollutants aren’t listed as activated carbon filter assisted houseplants as opposed to just houseplants.  One would think that activated carbon filter assisted houseplants is truly much more NASA than just plain old houseplants, right?NASA Simulated Plant Chamber

Regardless of my humble opinion and inability to comprehend the forgotten role of the activated carbon filters and the whole controlled environment issues here is NASA’s list of the top house houseplants that were most effective in removing formaldehyde, benzene, trichloroethylene and carbon monoxide. (I’ll have to get back to you on where to purchase the activated carbon filters)

While NASA is making us aware that houseplants are great at filtering out contaminants and adding oxygen back into the air, they seem to leave out the carbon assisted filters role, and that all of their testing was conducted in small controlled environment of a test chamber.  They also neglected to point out that to be effective at the lowest levels of any measured improvement NASA recommends 15 to 18 good-sized houseplants in 6 to 8-inch diameter containers for an average 1,800 square foot house.

John R. Griman (Chief of the Analysis Branch at EPA’s Indoor Air Division) calculates that at the most favorable conditions, it would take 680 plants in a typical house to achieve the same pollutant removal rate NASA reported they achieved in their test chamber.

Many of you may think that I am splitting hairs here but I’d like to share the findings that I’ve documented over the years.  I have conducted my share of indoor air quality assessments in homes and offices and prefer to document the temperature, humidity, particle levels, and any contributors to these areas such as aquariums, pets, those cute little water falls, and yes houseplants.

There are many other contributors to elevated humidity and particle levels but the patterns of elevated humidity and particle levels are far too often found in homes and offices with several houseplants.  I have had several clients tell me that the large number of houseplants in their home or office was to them help improve their indoor air quality.  Then why call me?  I guess the plants just really weren’t helping.

Would you believe that my first recommendation was to remove the houseplants? Well it was.  Would you believe that the air quality as monitored over the next few weeks was drastically improved?  Well it was.  Okay we implemented other means of improving the indoor air quality; I just thought I would file those with NASA’s activated carbon filters.

The truth is that I more often than not find houseplants over watered and often even dead and forgotten.  In many offices houseplants are the responsibility of the custodial service.  I’ve found that these individuals that are hired to maintain the houseplants are rarely trained on the frequency or correct amount of water to provide the plants.

The improvement of indoor air quality is a reduction of airborne and settled particles and the elimination of environments that can support microbial growth and/or areas that may contribute to the airborne and settled particle levels of the indoor environment.  This would include children and pets, I’m kidding.  Children and pets are huge contributors to poor indoor air quality but we would never consider getting rid of them, would we?

Houseplants on the other hand can be a major contributor to poor indoor air quality simply because most of us will never care for our houseplants as a NASA scientists care for their houseplants during experiments.   This I have found to be very consistent in my field assessments.  A few well maintained houseplants are a great asset to any indoor environment but as few as one poorly maintained houseplant can be to sole source of poor indoor air quality.

As for houseplants improving the indoor air quality of an indoor environment such as a home or office, I haven’t found that environment in any of my assessments over the years, not yet anyway.  I believe that far too many houseplants would be necessary to have a measured improvement in indoor air quality.  I also believe that the amount of time it would take to care for that many houseplants sways the pendulum back to the side of source rather than solution.

I just haven’t found that houseplants can improve indoor air quality in a real world indoor environment.  I do find houseplants often poorly maintained and the source of poor indoor air quality in indoor environments.  So I would have to vote fiction on this one.

Enjoy your houseplants but please maintain them properly.

John P. Lapotaire, CIEC

www.FloridaIAQ.com

http://www.microshield-es.com/moldinspectiontesting.html

www.Microshield-es.com


Spray Polyurethane Foam (SPF) Insulation Nuisance Odor Investigations, It’s not always the Foam

June 2, 2013

Indoor Air Quality Solutions, IAQSWith the rapid increase in the “Green” movement and the push for more energy efficient homes spray polyurethane foam SPF insulation is growing substantially.  As with most new building products the industry has had its own set of unique challenges that include the recognized need for training and certification for installers. Along with the recognized need for training are the results of inadequate applicator training, nuisance odors and occupant sensitivity.  These occupant related complaints have led to a rise in SPF insulation investigations by many who have little understanding of SPF insulation and how it can alter the indoor environment even when correctly installed.

When it comes to the investigation of nuisance odors associated with the application of spray polyurethane foam SPF insulation, I’ve found that most of the investigations typically involve little more than varied attempts at trying to chemically associate the odor with the off-gassing of the SPF.

I’ve been assessing spray polyurethane foam insulation SPF for several years on too many properties to list. I’ve assessed a dozen or so product lines both closed and open cell for manufactures, builders, homeowners, and applicators. The properties ranged from universities, community centers, offices, homes, both new construction and retrofit applications.

In my experience, SPF investigations can be categorized in three distinct categories. The first two seem to be the primary areas of SPFI investigations. The first category is simply miss-applied SPF, the second is presence of pre-existing or recently introduced contaminants and the third would be occupant exposure and sensitization during SPF application.

By using these three assessment categories, I have had great luck in identifying the catalyst of the odor and associated complaint.  It has also helped raise awareness that it’s not always the SPF.

The first category – Category 1 Miss-applied SPF Insulation category

These nuisance odors are directly associated with incorrectly applied SPF insulation and can be addressed by either correcting the areas of miss-applied foam or by removing and re-insulating the areas. Miss-Applied includes improper ventilation during the application, incomplete application, off ratio application, and also includes the SPF in direct contact with recessed can lights in the attic, keyless light fixtures bulbs, dryer vents, and/or chimney flues, all of which can heat the SPF and cause a tremendous amount of chemical odors.

Category 1 is relatively cut and dry and requires the onsite inspection of the SPF and the collection of no air samples.  The inspection of the foam and the determination of correct and complete installation is a critical first step.

I‘ve been on SPF insulation investigations where other Indoor Environmental Professionals (IEP’s) who were hired to assess the SPF insulation never looked at the SPF insulation.  Most have no knowledge of how to assess the correct or complete installation of the SPF insulation.  Most IEP’s show up with all manner of air sampling equipment and begin and end their investigation with the collection of air samples intending to identify the chemical signature of miss-applied SPF insulation.  But that’s just not going to happen.

For all who want to conduct SPF insulation inspections, start with understanding what correct and complete installation is according to the manufacturer who produced the foam you are inspecting.

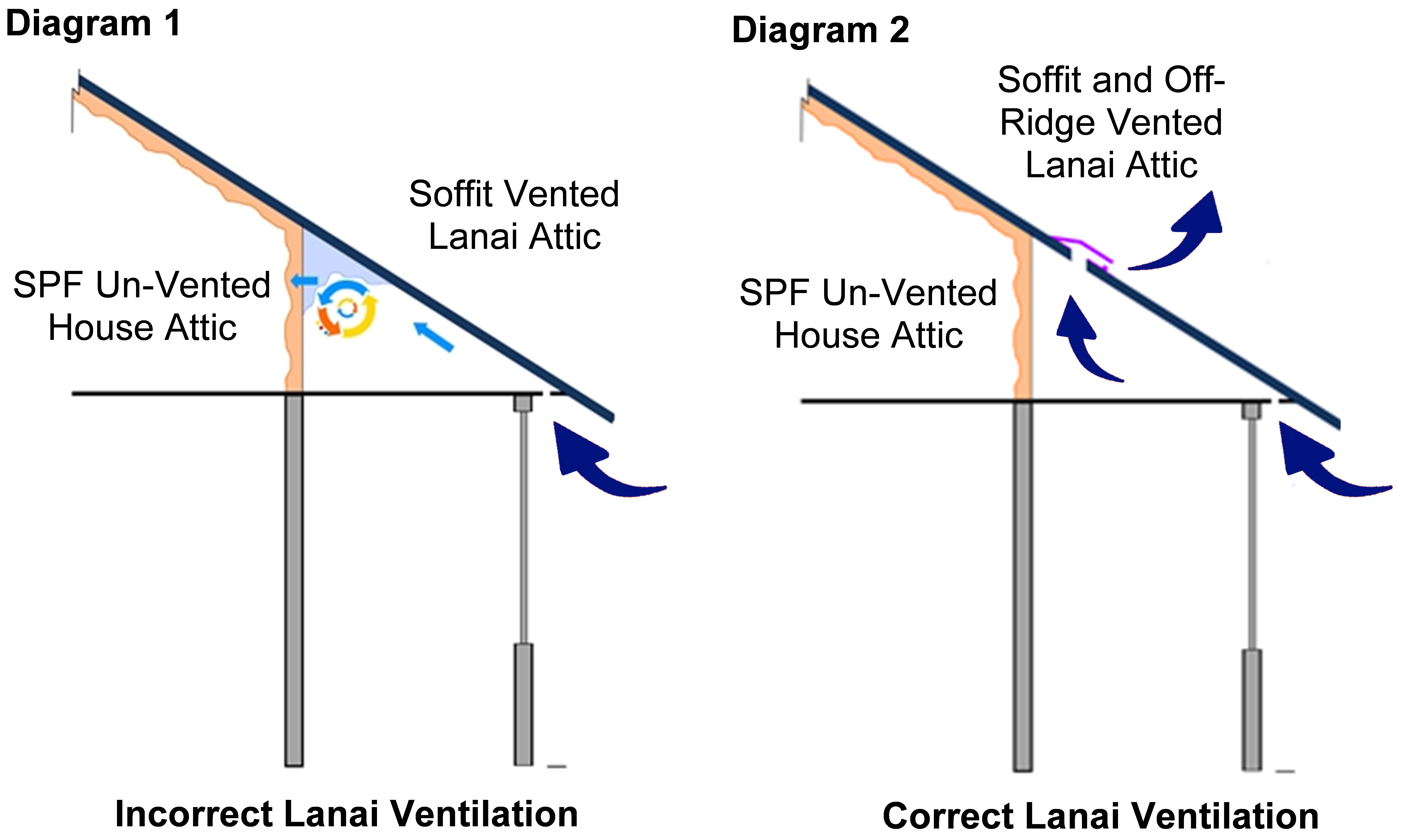

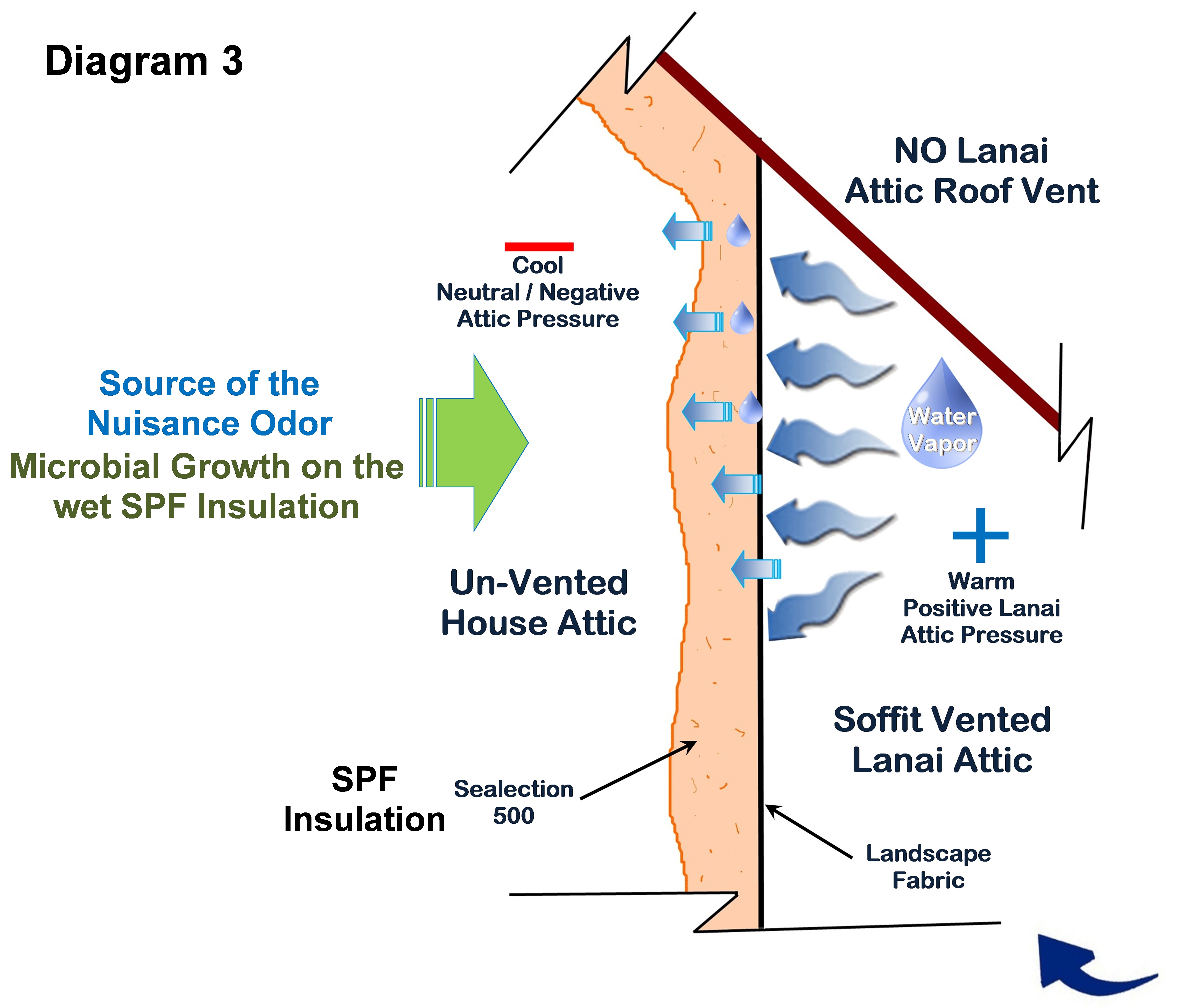

Below is an example of a home with retro-fit SPF insulation installed in the attic.  The homeowners hired an IEP to help establish and/or confirm that the SPF insulation was making them sick.  The home was traditionally ventilated with a large rear lanai.   As with typical SPF insulation landscape fabric was used to separate the lanai attic from the sealed SPF insulation attic.  However, the large Lanai attic space was not properly ventilated as shown in Diagram 1.


The lanai had soffit vents and no off ridge vents hence the incomplete attic ventilation.  The outdoor air pressure (wind) was moving the hot humid Florida air into the attic and into the sealed SPF insulation attic through the landscape fabric and SPF insulation as shown in Diagram 3.  The moisture was supporting microbial growth that was the actual odor identified within the home.  The correction was to first relieve the lanai attic pressure by installing an off ridge vent as shown in Diagram 2 and then by removing and replacing the mold damaged SPF insulation.


Unfortunately, thousands of dollars were spent on the hunt for the infamous miss-applied chemical signature of the off-gassing SPF insulation.  Of course to no avail.  This is just one example of the easily overlooked yet painfully obvious issues with incomplete or incorrect SPF insulation.

The second category – Category 2 pre-existing or recently introduced contributors

This category cannot be stress enough to the professionals that are investigating SPFI.  This category runs the gamut and can include some rather odd contributors to occupant discomfort and nuisance odors that become much more concentrated when the SPFI is installed.   These include the HVAC system, air exchange rate, storage of materials in the now sealed space, insect and or rodent activity, routine pest control applications, the previous insulation condition and material, proper ducting of kitchen and bath fans.  The possibilities are endless and all must be considered.  Remember that what has accumulated in the attic is now semi-conditioned air that is shared with the attic and living space of the home.

For example if the home is a 60 year old ranch that had open cell SPFI installed at the roof sheathing and the attic was not cleaned to help save a few bucks, the bath fans are ducted to the attic space, and the home once had a rodent issue that was treated with poisons.  Well to say the least you have a huge list of contributors to occupant discomfort and nuisance odors.  Most of the SPF insulation investigations I am called in to review all of these issues were overlooked simply because of the recent application of SPFI.

It’s not necessarily the SPF insulation that is producing the odor or contaminate that is causing occupant discomfort but the SPF insulation is what eliminated the natural ventilation of the attic which prevented the odors and contaminants from entering the home.  The SPF insulation has now trapped the odors and contaminants within the semi-conditioned space.

In this case, the home also had no outdoor air and the home was accumulating VOC’s from daily use products.

The home was blower-door tested and didn’t even come close to the minimum ASHRAE air exchange rate. That attic air is now a part of the occupied space as semi-conditioned space and has 60 years of accumulated who knows what.  Easily it could include the accumulation of dust, debris, fiberglass, rodent and insect activity, prior application of pesticides, maybe even vermiculite.

This is a huge aspect of an SPF insulation investigation that I find all too often overlooked. As a professional investigating SPF insulation you have to ask questions beyond the obvious who was the demon SPF insulation manufacturer.

You have to ask relevant questions such as;

  • “What is the condition of the new semi-conditioned space?”
  • “What have the occupants been sealed in with?”
  • “How is the air exchange rate being met?”
  • “How is the semi-conditioned space actually being semi-conditioned?”

Sometimes it’s best to keep it simple, particles, pathway, and pressure.  Remember to keep an opened mind; it’s not always the SPF insulation.

On a retrofit SPF insulation investigation where there was an odor described as rotten eggs or sulfur the home owner hired an IEP to help establish that the SPF insulation was making them sick.  The IEP’s hired to find the odor focused on TO-15 sample collection throughout the home.  They were confident they identified the miss-applied SPF insulation chemical signature.  Not quite. Just under $5,000 later it was determined that the samples identified a chemical cocktail that could have been the result of just about everything used within the home over the last year since the SPF insulation was applied.  With no outdoor air supply and poor ventilation the VOC’s created within the home stayed in the home.  What the IEP’s didn’t notice was a failed air admittance valve in the attic over the area where the odor was the strongest.  At a cost of twenty bucks for a new air admittance valve the odor was eliminated.

On a new construction SPF insulation investigation, the IEP’s hired to establish that the SPF insulation was making the homeowners sick once again set up the VOC sample collection center and collected four TO-15 8 hour summa canisters and 8 sorbent tubes from a single story 2,200 square foot home.

The homeowners reported that after about a year the home began to make them feel worse when home than when away.  The culprit in their mind was the SPF insulation.  When I asked them how they came to that conclusion they said Google. They then hire an IEP to help them prove to the builder that the SPF insulation was making them sick.

As the IEP was setting up their summa canisters, I began my investigation that started with the condition and settings of the homes ventilation system.  I knew the home had outdoor air supply.  I simply wanted to determine the thermostat and Aprilaire settings and establish the amount of outdoor air being supplied to the home.  As shown in the photo the Aprilaire ventilation controller was set to “Off”.


When the 8 hour sampling period was over and the IEP was collecting their equipment I cranked up the AC and opened the Aprilaire ventilator to 30 minutes per cycle. During the sampling period of 8 hours the carbon dioxide levels were measured above 2000 ppm and the tVOC’s were measured at a mere 700 to 800 ppb.  After 1 hour of proper ventilation the carbon dioxide and tVOC levels were reduced by more than 50%. Amazingly the issue proved to be accumulation and not production of VOC’s.  Once again a complete investigation identified an issue with the ventilation that was misdiagnosed as SPF insulation.

On another SPF insulation investigation were the homeowner had spent thousands on sampling with an IEP who felt he had established the connection between the SPF and the occupant symptoms.  Again review by the PhD’s and chemist found no such connection that could be corroborated.  However the interview found that the homeowner was in the second floor master bedroom during the application of the SPF insulation.  The access to the attic was in the master closet, nice.  The applicator didn’t want to use landscape fabric to separate the large covered second story balcony just outside of the master bedroom so the applicator just applied the SPF insulation to the ceiling of the balcony.


The photos above show two of the nine recessed can light fixtures that were covered in the foam from completely covered to just shy of completely covered.  The homeowner liked to sit outside in the evening and look out over the lake.  However, he reported that he could no longer spend the evenings on his beloved balcony because he was so sensitive to the SPF insulation. Yes he had become sensitized to the SPF insulation because he was in the home during the application but the trigger or catalyst to the odor was the heating of the SPF insulation just outside his master bedroom and just above his beloved balcony each time he turned on the balcony lights.

Sometimes as IEP’s we are hired to provide a very specific service.  I’ll use mold as an example.  When some IEP’s are hired to provide a mold inspection they often become far too focused on looking for one potential contributor and often overlook the many other and often obvious contributors.  Samples for mold spores are collected and moisture is hunted with a vengeance but not much else is looked at or investigated.   SPF insulation investigations are the same.  Are we hired to help the homeowner identify what in their home may be contributing to their symptoms or are we there to prove their hypothesis that it is or isn’t mold or SPF insulation.

IEP’s often go in with blinders on and lose focus on the true intent of the investigation which in my opinion should be “What is contributing to occupant discomfort and complaint?”   The IEP should approach the home as a system and be open to all potential contributors to occupant complaint.  The chief characteristic that distinguishes the scientific method of investigation from other methods of investigation is that scientists seek to let reality speak for itself, supporting a theory when a theory’s predictions are confirmed and challenging a theory when its predictions prove false.  Scientific investigation is generally intended to be as objective as possible in order to reduce biased interpretations of results. This is often overlooked when the IEP conducts an investigation focused on making the evidence support their hypothesis without objective challenge.

IEP’s must remember that while the SPF insulation may be the issue unless you can say there are no other issues within the home you have not completed your investigation you have just begun.

The third category – Category 3 Sensitization due to exposure

This category includes all occupants who have become sensitized or allergic to the odors given off from SPFI. With sensitization occupants have either re-entered the property shortly after the foam is applied, well before the manufacturer recommended re-occupancy time of 24 to 48 hours while the SPF insulation is still curing and off-gassing, or in the most severe cases of occupant sensitivity the exposure was actually took place during the application of the SPF insulation.

I had one case where the sensitized occupant was also the general contractor that built the home.  During the interview with the owner builder, I asked what he knew as a builder about the SPF insulation.  He admitted to not knowing anything until he began to react to the SPF insulation in his home.  I asked if he had the MSDS to review and he informed me that he did not.  Interesting, I asked if he maintained all of the building material MDS onsite.  He happily sad no that’s up to the subcontractors, interesting.

I then asked him if he was curious as to how the SPF insulation was applied and he of course told me that he was very curious.  He told me that he was in the attic while it was being applied.  Incredible right, you can’t make this up.

I asked if he thought it was odd that the applicator was in full protective equipment with supplied air and he was just watching in street clothes.  I also asked if the contractor told him that he shouldn’t be watching without personal protective equipment.  He told me that the contractor told him that he shouldn’t be up there when it was being applied but it was his house and he was the builder so he was going to do what he wanted.  I asked how long he was up there and he said about 30 minutes and then he began to get a huge headache.  Unbelievable, he was incredibly sensitized to the foam and no amount of miss-applied SPF insulation removal was going to provide him any relief.

Sensitization of the occupants can be a result of many issues such as occupants that don’t want to spend the money for a hotel stay, early re-entry or occupancy, the curious application observer, to the painfully stupid like the builder above.  However occupant sensitization can also be the result of the lack of proper ventilation during the application.  Venting of the off-gassing of the SPF insulation during application is critical and often not conducted at all. In all cases of occupant sensitization that I have been involved with the SPF insulation application was not properly vented to the exterior which created a substantial accumulation of the off-gassing chemicals within the property. These trapped volatile organic chemicals VOC’s are what sensitizes the occupants who have either re-occupied too early or were present during the SPFI application.

Sensitization occurs when the occupants are overexposed to the trapped volatile organic chemicals VOC’s and become sensitized. From that point on, any exposure to even a minute amount of the chemical causes a reaction. The process of sensitization can make a home unlivable for people who become sensitized.

Homes that have improper ventilation during the application process of the SPF insulation are also included in the miss-applied category and almost always have identified areas of miss-applied SPF insulation (SPFI).

This category is unique in that any attempt at reducing the occupant’s exposure to the SPF insulation that they are now sensitized to may not be of any relief.  I have had no luck in providing sensitized occupants relief from the home they are now sensitive to.  I have been involved in everything from the introduction of outdoor air through a pre-filter and dehumidifier to control the temperature, humidity, particles, path, and pressure to full removal of the SPF insulation. Unfortunately that bell can’t be un-rung.

Steps in the Right Direction

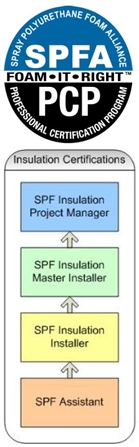

SPFA’s The Spray Polyurethane Foam Professional Certification Program (“SPFA PCP”) launched at the SprayFoam 2013 Convention & ExpoImage

To become certified under SPFA’s new program, you must pass the exam and meet the criteria for any level of Certification you would like to achieve. It is a progressive program with each level based on the candidate passing the exam for the previous level. In other words, EVERYONE must begin with SPF Assistant criteria. If your ultimate goal is to be a Certified Project Manager, you must meet the requirements for Assistant, then Installer, then Master Installer, then Project Manager to become a Certified SPF Project Manager. http://www.sprayfoam.org/

Connecticut House Bill No. 5908; An act requiring safety and certification standards for the spray foam insulation industry

ASTM WK30960 is intended to establish safe re-entry times for occupants following spray polyurethane foam insulation application.

ASTM WK30960 – New Practice for Spraying, Sampling, and Packaging Spray Polyurethane Foam (SPF) Insulation Samples for Environmental Chamber Emissions Testing

The CAN/ULC S705.1 National Standard requires that the spray polyurethane foam material be installed in accordance with the CAN/ULC S705.2 standard for Thermal insulation – Spray applied rigid polyurethane foam, medium density – Application.

The CAN/ULC S705.2 Application Standard lists a number of requirements for the manufacturer (seller of the two liquid components), the contractor (the corporation who has the contract to perform the installation) and the installer (the worker who actually sprays the components to form spray polyurethane foam on the job site).

The CAN/ULC S705.2 Application Standard sets forth requirements for environmental conditions suitable for spraying, substrate requirements, installation requirements, daily testing of the installed products and documentation requirements.

The Licensed Contractor is required to use applicators that are trained and certified under the SPF Quality Assurance Program used by CUFCA. Each installer is issued a plastic photo-identification card every July 1. The installer is required to carry this card with him during the complete installation period.

John P. Lapotaire, CIEC
Certified Indoor Environmental Consultant
Indoor Air Quality Solutions, IAQS
Microshield Environmental Services, LLC
Certification by American Council for Accredited Certification ACAC CIEC #0711048
Council-certified Environmental Thermography Consultant ACAC CETC #1005013
Accreditation by Council for Engineering and Scientific Specialty Boards (CESB)
Florida State License Mold Assessor MRSA #4

www.FloridaIAQ.com

http://www.microshield-es.com/sprayfoam.html

http://www.microshield-es.com/moldinspectiontesting.html

www.microshield-es.com
